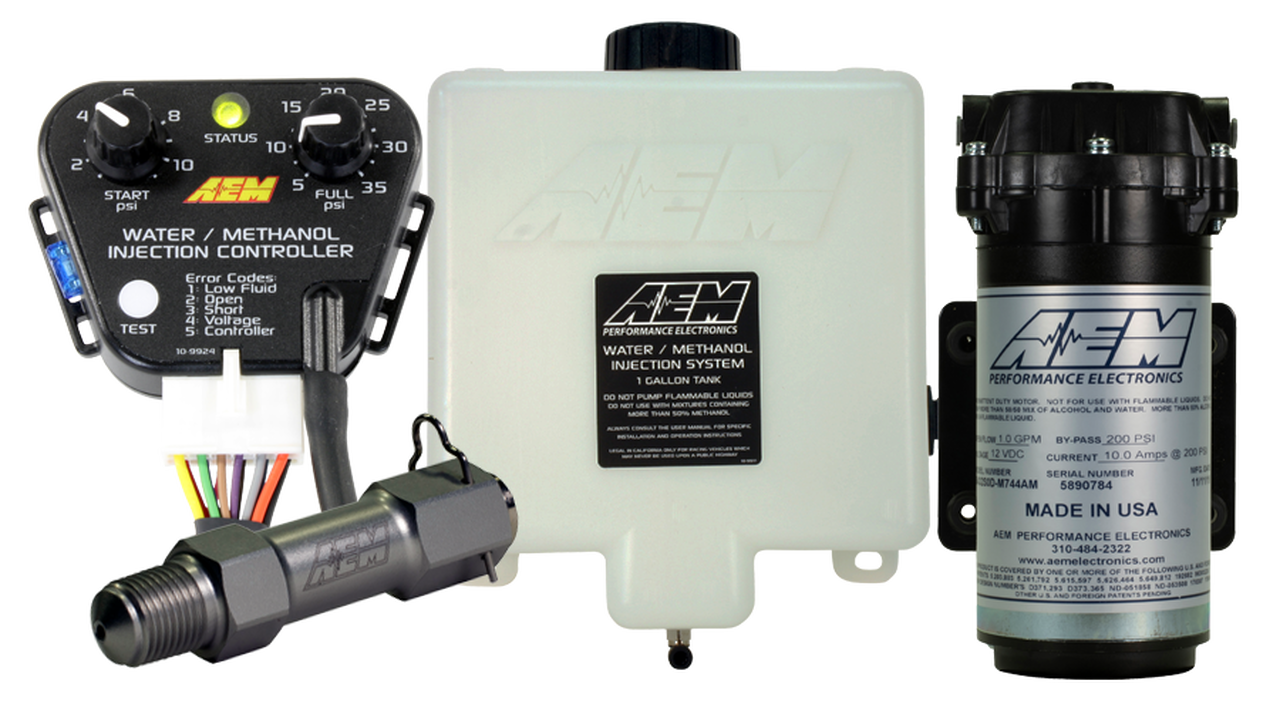

AEM V3 Water/Meth Injection Kit

AEM V3 Water/Methanol Injection Kit, Standard Controller - Internal MAP with 35psi max, 200psi WM Pump, 1 Gallon Reservoir, Conductive Fluid Level Sensor

AEM has updated its gas and turbo Diesel Water/Methanol Injection systems again, this time with a breakthrough injector design that improves atomization to deliver faster inlet temp cooling and use less fluid to maintain cooling. This dramatic improvement in injector technology is coupled with a new WMI pump design that is 100% waterproof, making it safe for engine bay and frame rail mounting. The V3 injector replaces the old V2 injector in all of AEM’s WMI systems and it can be purchased as an upgrade to existing systems.

THE AEM WATER/METHANOL INJECTION SYSTEM ADVANTAGE
Water/methanol injection for forced induction (turbocharged or supercharged) gas-powered race engines is a proven means for effectively reducing engine inlet air temperatures and suppressing harmful detonation. This allows racers to reliably increase boost and advance ignition timing—without using high-octane racing fuel—for power gains of up to 20%. AEM’s Water/Methanol Injection Systems utilize the most robust hardware combined with more advanced features than any other comparably priced water/methanol system.

• Boost Dependent and Multi-Input (0-5v/frequency) progressive controller designs feature large adjustment knobs, integrated plug for harness connection, integrated fuse, covered status light and test button for enhanced splash resistance and mounting tabs


• Wiring harness is terminated with a positive-lock connector on one end with color-coded wires to ease installation, integrated pump ground circuit and additional wire for optional on/off fluid solenoid


• “Boost Safe” failsafe output included (for complete failsafe under all conditions, see our Water/Methanol Failsafe Device)


• Heavy-duty high-pressure injection pump features integral fittings, a Santoprene diaphragm and EPDM seals to resist corrosion. Our pump maximizes line pressure for optimum atomization and its quiet, smooth operation is almost undetectable


• Precision-machined billet-aluminum injector with integral check valve


• Three interchangeable injector nozzles to cover a wide variety of HP levels (250cc/min, 500 cc/min & 1,000cc/min)


• 1.15 gallon tank with anti-starvation reservoir, integral conductive low-fluid sensor and positive lock connector (tank-less systems available)


• 20 feet of injection tubing included


• LED dash light for system status and low fluid warning

Reduces Air Inlet Charge Temps
Reduces Detonation (Knock)
Reduces Carbon Deposits
We can fit and tune this in house, please contact us for more information
